Serving the Critical Data Storage Needs
of Industrial and OEM Customers
Serving the Critical Data Storage Needs
of Industrial and OEM Customers
Serial ATA (SATA or Serial Advanced Technology Attachment) is a computer bus interface for connecting host bus adapters to mass storage devices. Serial ATA was designed to replace the older parallel ATA (PATA) standard (often called by the old name IDE), offering multiple advantages over the legacy PATA interface: reduced cable size and cost (7 pins instead of 40), native hot swapping, faster data transfer through higher signalling rates, and more efficient transfer through an (optional) I/O queuing protocol.
Fortasa Memory Systems manufactures multiple SATA interface based Flash Storage Products such as SATA Flash Drive, SATA Flash Module, mSATA and M.2 form factor devices. Manufactured using high reliability SLC NAND Flash, cost effective MLC NAND Flash, or the newest 3D TLC NAND components, Fortasa's SATA Flash Storage Solutions support Standard (0 to 70oC) and Industrial (-40oC to +85oC) Temperature ranges.
1.8" SATA FLASH DRIVE
Fortasa's 1.8" Industrial Serial ATA Flash Drive Series is the smallest form factor SATA SSD with full metal housing. This drive is perfect for applications requiring smaller drive footprint with robust protective shield against external physical damage.
2.5" SATA FLASH DRIVE
Fortasa's 2.5" Industrial Serial ATA Flash Drive is the most common Flash Drive form factor in industrial and computing applications. Containing no moving parts, the SAFD Series of Industrial SSDs is specifically designed to be used in most rugged environments where data reliability requirements are significantly greater than that of a consumer product.

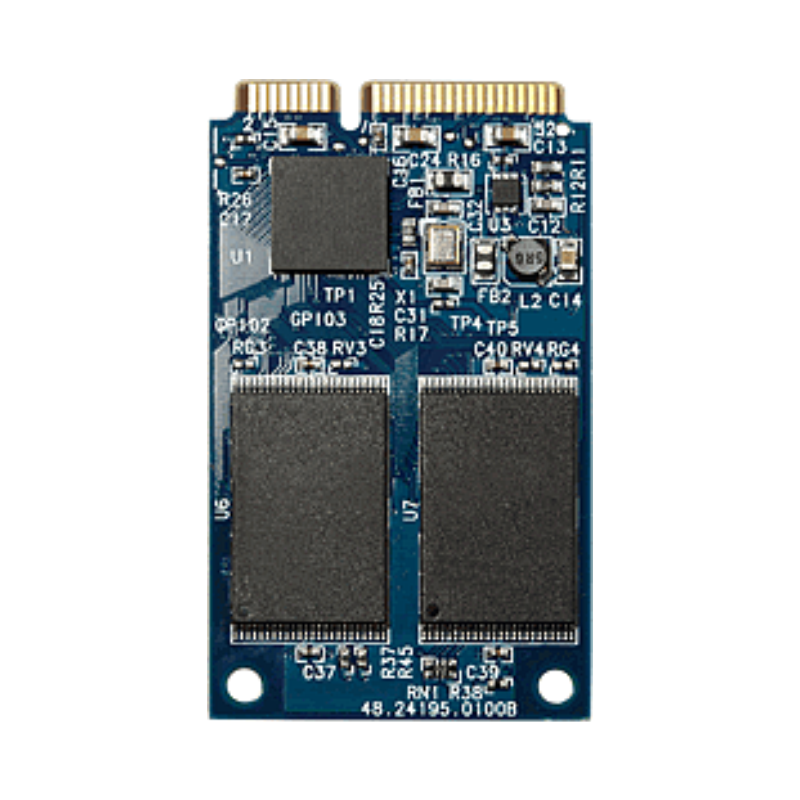

mSATA Flash Module
Fortasa's Industrial mSATA SSD fully conforms to the JEDEC MO-300 SSD specification standard in physical form (50.8mm (L) x 29.8mm (W)) and connector interface.
mini mSATA Flash Module
For even more portable designs, Fortasa offers Industrial mini mSATA SSD that fully conforms to the JEDEC MO-300B SSD specification standard in physical form (29.85 mm x 26.80 mm x 1.00 mm) and connector interface.
SLIM SATA FLASH MODULE
The newest ultra-slim Serial ATA Flash Drive - 1.8” Slim SATA drive is fully compliant to the MO-297 JEDEC Standard and meets the light weight and mobility requirements for the next generation of portable devices.
SATA DISK MODULE
Fortasa's SATA-Disk Module (SDM), commonly known as DOM (Disk On Module), is the broadest offering of Industrial Grade Flash memory modules designed to fit any standard SATA socket for memory expansion.
M.2 SATA INTERFACE
Fortasa's M.2 SATA Flash Module offers Industry Standard Bus Interface and Commonly used Form Factor.
